MSU-1 Open box
Full Digital Wrist Ultrasound Scanner with Mechanical Sector Probe!
MSU-1 Open box model was used as a demo for 30 minutes.
This mobile ultrasound is completely portable and extremely comfortable to use. This handheld wrist ultrasound machine is recommended for pregnancy scanning of farm animals (goats, sheep, pigs and more). Can be used even for large animals (cattle, equine). Provides pseudo color, a USB port for image saving and offers video saving.
Features of the MSU-1:
- Mechanical sector scanning technology
- Ingenious outline and multifunction
- Mechanical sector probe can be used optionally
- Lighweight, about 2 lbs.

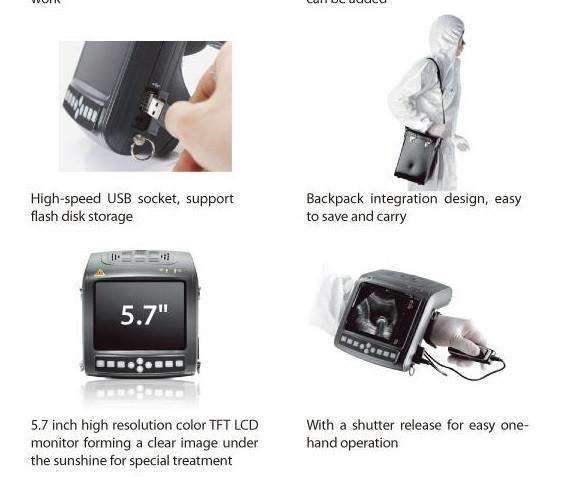

- USB disk function allows for easy image transfer
- One Rechargeable battery for 2 hours of work time
- Technology: All-digital mechanical sector imaging technology, excellent image quality with high resolution and high penetration.
- Scanning methods: Mechanical sector scanning.
- Scanning technology: Real-time dynamic imaging, harmonic imaging.
- Probe: Mechanical sector probe.
- No. Of probe connectors: 1.
- Monitor: 5.7" high resolution non-interlaced SVGA display.
- Keyboard: Ergonomic keyboard.
- Gray scale: 256 levels.
- Display modes: B, B/B, B/M, M, or 4B.
- Speed in M mode: 1s, 2s, 3s, 4s, 5s, 6s, 7s and 8s.
- Magnification: *0.8, *1.0, *1.2, *1.5, *1.6, *2.0, *2.4 and *3.0.
- Focusing methods: Single-point, multi-stage transmitting, dynamic focusing
- CINE loop: 256-frame.
- Zoom: Intelligent local zoom in real-time and frozen mode.
- Pictures storage and transfer: Built-in 100-frame image storage, USB Image transfer, Ultrasound working station.
- Pictures Processing: Depth enhancement/pan function, Left/right, positive/negative, vertical, horizontal flip and B/W conversion, Angle change, Image freeze/unfreeze, Gamma correction, EDGE enhancement for image after-processing, gray transformation, gray rejection etc. Frame correlation function, Adjustment and display of near field, far field, total gain and dynamic range, Pre-processing: IP selection, dynamic range, EDGE enhancement, smooth, frame averaging, scanning angle selection, line density selection etc.
- Measurements: B mode: Distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile etc, M mode: Distance, time, velocity, heart rate etc. General software packages for Abdomen, OB/GYN, Small parts, Urology, Cardiology etc. Obstetric package including 10 tables, automatic calculation of EDD, BPD, GS, CRL, FL, HC, AD, AC, GA, FW and fetus weight, 4 veterinary body marks.
- Report: Obstetric report.
- Documentation: Full screen documentation, hospital name, Patient name, date/time.
- Power Supply: AC 100-240V~, 50-60Hz.
- Power consumption: ≤ 40VA.
- Others: 8 kinds Pseudo-color, Energy-saving, PAL-NTSC switchable.
- Application For reproduction of swine and goat
Other Information/Standard Parts:
- MSU1 main unit
- 5.7" high resolution non-interlaced LCD display
- 1 probe connector
- 256-frame CINE loop
- 100-frame image storage
- USB disk port
- Measurement & calculation software packages
- Mechanical sector probe
- 4 veterinary body marks
- Ultrasound working station
- USB software with connection cable
- Ultrasound goggles
- Rechargeable power supply
- Rechargeable power supply in car
- Thermal printer (brand: Mitsubishi, model: P93W-S)
- Printer paper (cheap)
- Printer paper (expensive)
