DCU-12Vet Only Few Left!

Newest Color Doppler Ultrasound!

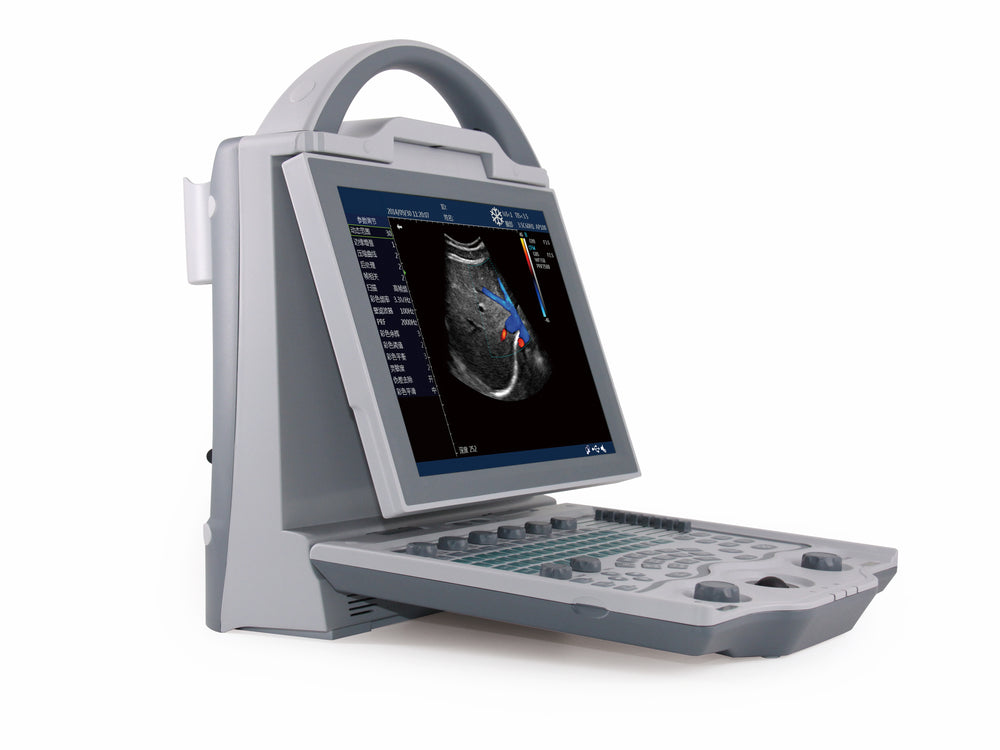

DCU-12 is a full digital color Doppler system. This easy to use color Doppler offers excellent image quality and reliable performance. Provides abundant measuring software aiding confidence in making diagnoses! Excellent for use with cattle, dogs, horses, cats, goats, camels, sheep and pigs.

Features of DCU-12Vet

• Transmitted signal accuracy control
• ilmage: image optimization imaging technique
• Adaptive color artifact removal technique
• linear probe independent angle deflection
• I-station integral working station
• Phase enhance harmonic
• Accurate vessel image
• Convenient and practical data manager
• Abundant measuring software

Technical Specifications

• Built-in embedded A8 platform, totally against virus invasion, with high reliability.
• Operating system： Linux
• Digital multi-beam forming technology, precision delay-by-point dynamic receive focus, ultra-wideband imaging, adaptive image optimization, adaptive angiography, adaptive Doppler imaging.
• Ultra-wideband fully digital beam former: Dynamic Focus
• Gray-scale imaging unit
• M-mode imaging unit
• Visual adjustable dynamic range
• Gray-scale imaging unit, grayscale ≥256 levels, with excellent contrast resolution and the audience subtle and uniformity
• Gray scale：256 levels；
• Color scale：256 levels；
• Display：10.4’Flicker-inch high-resolution LCD dedicated medical color display
• Power supply：100-240V～ 1.2-0.6A Fre：50-60Hz；
• adapter output：DC12.8V 3.0A；
• power consumption：≤100VA
• main unit dimension：approx 256×150×326(mm，L×W×H)；
• main unit N.W.：4.5Kg(without accessories)；

Standard Configuration

• Main Unit
• Working station
• Reticle
• One probe of choice

Probe Choices

• 3.5MHz R60 convex probe (2.0/2.5/3.5/5.0MHz)
• 7.5MHz L40 linear probe (6.0/6.5/7.5/9.0MHz)
• 6.5MHz R20 micro-convex probe (5.0/6.5 /7.5/9.0 MHz)
• 6.5MHz linear rectal probe (4.5/5.5/6.5/7.5MHz)

Multimedia and peripheral equipment

• video printer；
• i-Station integrated workstations, to achieve store images, report generation and cloud printing capabilities;
• U disk (file management support, software upgrades, and one-key store function), DICOM interface, easy to doctor's data management, remote transmission；
• Dual TV output：PAL/NTSC。

Operating mode B、B/B、4B mode; M、B/M mode; CFM; PDI; PW; THI

Optional

• Trolley
• Foot switch
• Thermal Printer (Sony Up-897MD)
• Ethernet switch
