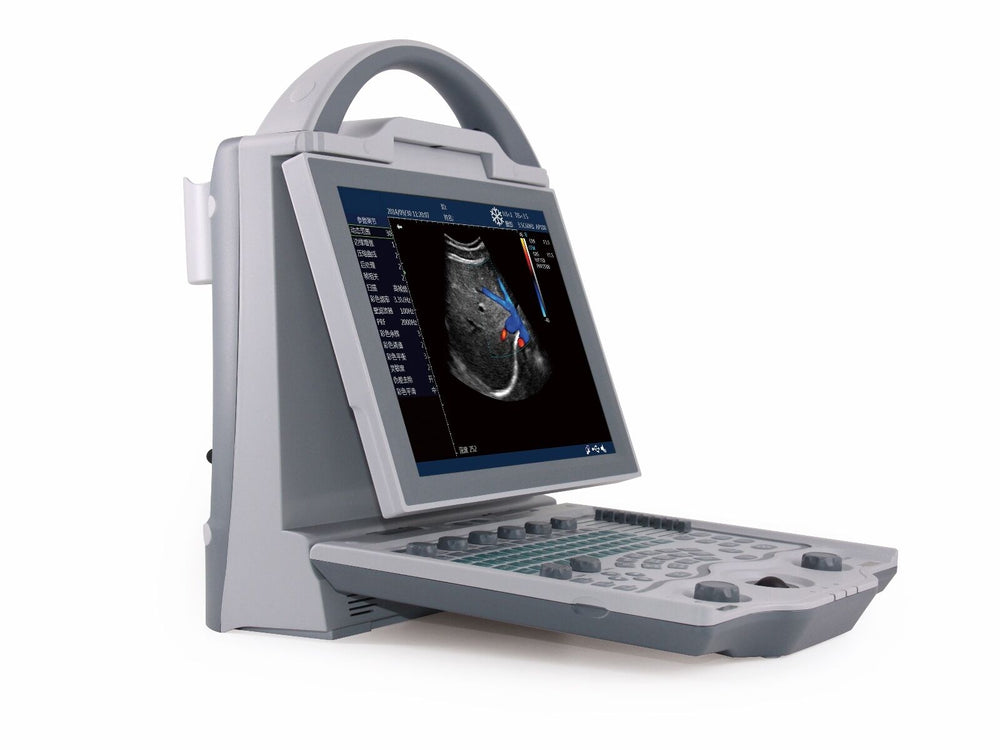

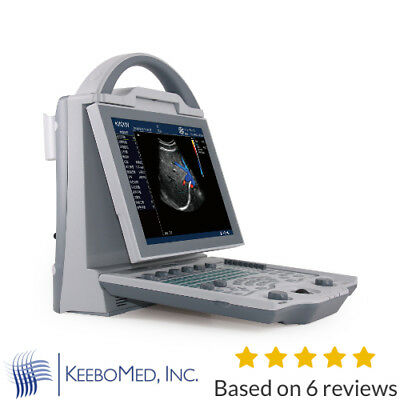

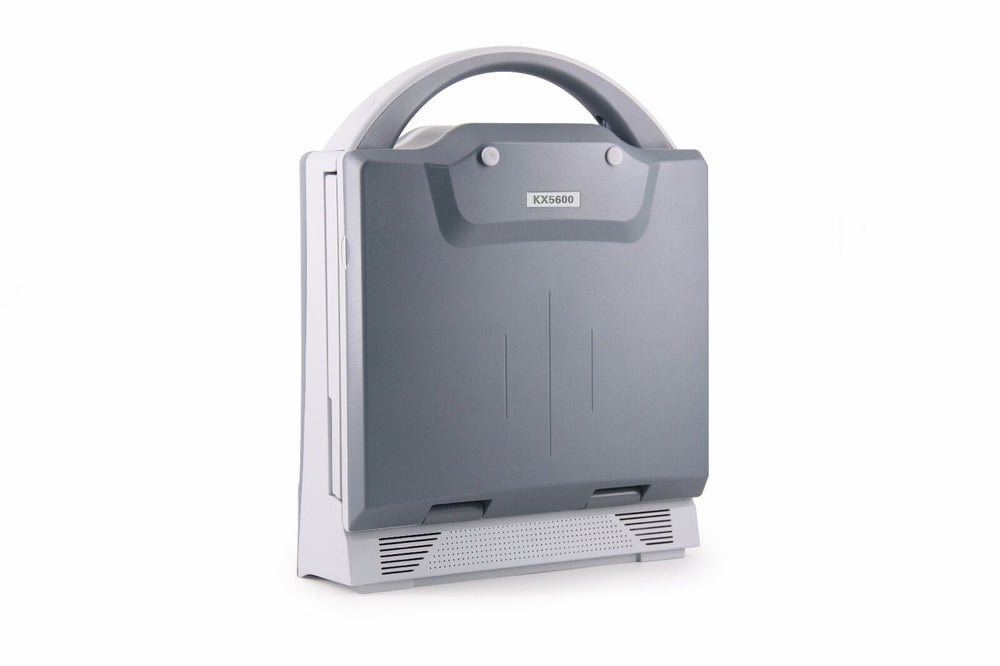

DCU12 With 2 probes

Features

• Software Packages
• Transmitted Signal Accuracy Control
• i-Image, Image Optimization Imaging Enhancement
• Adaptive Color Artifact Removal Technique
• Linear Probe Independent Angle Deflection
• i-Station, Integral Working Station
• Phase Enhance Harmonic
• Accurate Vessel Imaging
• Convenient and Practical Data Manager
• Abundant Measuring Software

General Description

• Built-in embedded A8 platform, totally against virus invasion, with high reliability.
• Operating system: Linux
• Digital multi-beam forming technology, precision delay-by-point dynamic receive focus, ultra-wideband imaging, adaptive image optimization, adaptive angiography, adaptive Doppler imaging.
• Ultra-wideband fully digital beam former: Dynamic Focus
• Gray-scale imaging unit
• M-mode imaging unit
• Visual adjustable dynamic range
• Gray-scale imaging unit, grayscale ≥256 levels, with excellent contrast resolution and the audience subtle and uniformity

Technical Parameters:

• Gray scale：256 levels
• Color scale：256 levels
• Display: 10.4’ Flicker-inch high-resolution LCD dedicated medical color display
• Power supply：100-240V～ 1.2-0.6A Fre：50-60Hz
• Adapter output：DC12.8V 3.0A
• Power consumption：≤100VA
• Main unit dimension：approx 256×150×326(mm，L×W×H)
• Main unit N.W.：4.5Kg (without accessories)

Multimedia and Peripheral Equipment:

• Video printer
• i-Station integrated workstations, to achieve store images, report generation and cloud printing capabilities
• U disk (file management support, software upgrades, and one-key store function), DICOM interface, easy to doctor's data management, remote transmission
• Dual TV output: PAL/NTS

Operating Modes:

• B, B/B, 4B
• M, B/M
• CFM
• PDI
• PW
• THI

Operating System Setup

• Basic Setting: Interface language, time, date and date format, screen-savers time settings, key tone setting, standard setting, font brightness setting.
• Formula preset: gestational formula for cattle, dogs, horses, cats, goats, camels, sheep and pigs.
• Notes preset: disease, routine, abdominal, obstetric, cardiac, urology, superficial seven kinds, can be preset for each common noun, and can be added, modified and edited according to the actual requirements, very user-friendly
• Stored presets: Photo storage format selection: BMP, PNG format (image compression format).
• Password preset

Standard Configuration:

• Main unit

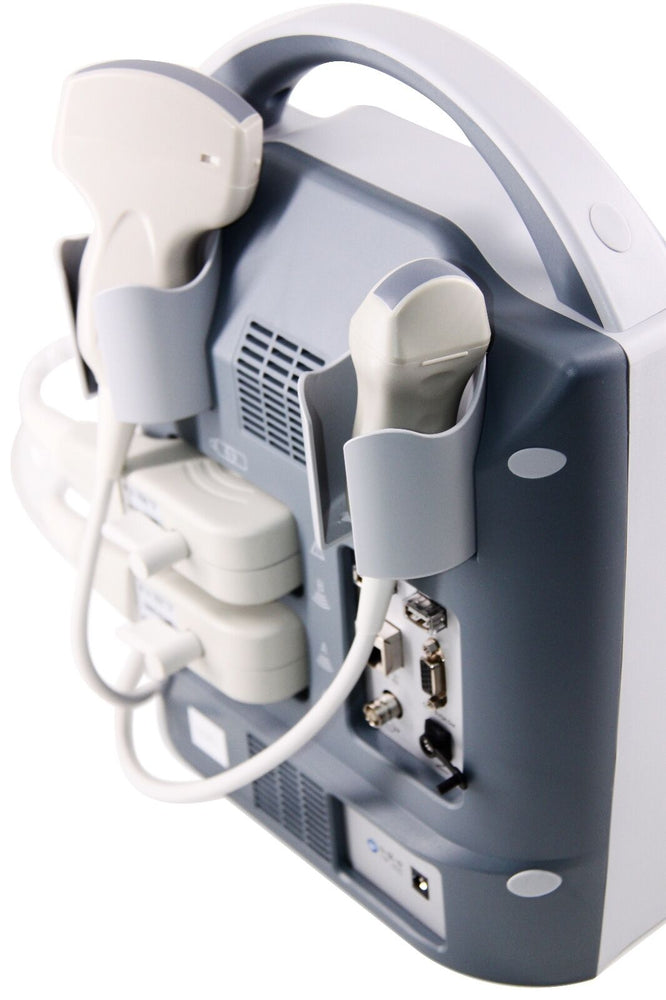

• Two probe sockets
• one  probe
