SonoScape S6BW Ultrasound
SonoScape S6BW Ultrasound Scanner
SonoScape S6BW Ultrasound Machine
On Sale

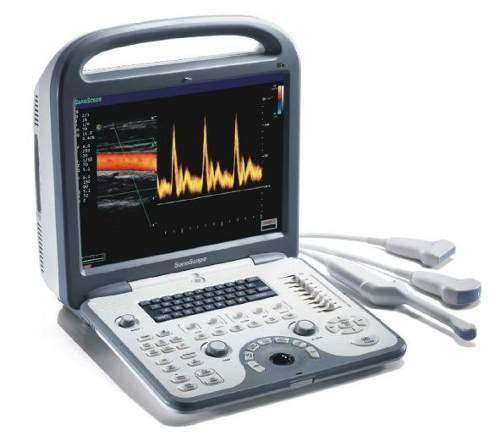

SonoScape S6BW

No reviews
Regular price $0.00

Call for best lowest price!

S6BW is a genius of B/W HCU system.  Small yet powerful function, light weight but uncompromising ability.  The S6BW is designed to be an easy-to-use yet feature-rich ultrasound system, so it can not only fulfill the traditional application work, but also the emerging applications, such as anesthesia, ICU and emergency.

The doctors will show much more confidence than ever based on both the high definition 2D image quality and the optional color Doppler kit of S6BW.  Features of SonoScape S6BW are listed below.

  • Support PW/HPRF Doppler
  • Premium B/W HCU with color option
  • Imaging mode: 2D, M, 2B, 4B, B/M, PW, and HPRF
  • Full Transducer Family: Convex, Phased, Linear, Transvaginal, Transrectal, Bi-plane, Intraoperative, etc.
  • 200° transvaginal image with Temp-detection Technology
  • Maximum 32cm penetration (transducer dependent)
  • Intuitive operation with one-key image optimization function
  • 3D imaging compatible with all transducers
  • Full patient database solutions: DICOM3.0, AVI/JPG, USB2.0, HDD, PDF report, etc.
  • Built-in high capacity Li-ion battery

Portable S6BW black & white Ultrasound System Standard configuration including

  • 15” High Resolution LCD color monitor
  • Intuitive EXAM icon
  • HQNF Technology
  • Real-Time Matching Technology
  • Tissue Harmonic Imaging (THI)
  • DICOM 3.0 Basic: Including DICOM storage, print, image storage and media storage, USB2.0 Mobile drive image retrieving and software upgrading
  • Integrated Recording keys for Remote control of Peripheral Devices and DICOM Devices
  • 8 TGC Pods
  • (2) TWO Active connectors selectable via keyboard and Hot swap
  • Measurements & Calculations: General, obstetrical/Gynecological, basic Cardiac, Vascular, Urological, C344, 2-6MHz/R40mm, THI 3.5-7MHz Abdominal Convex Probe

Options

  • Panoramic Imaging
  • Micro-Scan Technology
  • Footswitch for S8 for freeze and print
  • Travel Suitcase
  • Trolley

Transducers

  • C344, 2-6MHz/R40mm, THI 3.5-7MHz Abdominal Convex Probe
  • C362, 2-6MHz/R60mm, THI 3.5-7Mhz Abdominal Convex probe
  • C542, 3.7-9MHz/R40mm, THI 5.4-11MHz Abdominal Pediatric Probe
  • C311, 2-4MHz/R15mm, THI 3-6MHz Micro-convex Cardiac Probe
  • C611, 4-10MHz/R11mm, THI 6-13MHz Micro-convex Pediatric Cardiac Probe
  • L741, 5-15MHz/46mm, THI 9-16MHz Vascular Small part Linear Probe
  • L742, 4.5-15MHz/38mm, THI 9-15MHzVascular Small part linear probe
  • L743, 5-15MHz/46mm, THI 9-16MHz Vascular Small part linear probe
  • L541, 3.7-8MHz/38mm, THI 5-8MHz Vascular Linear probe
  • 10L1, 4.5-15MHz/36mm, THI 9-15MHz Vascular Small Parts Probe
  • 10I2, 4.5-15MHz/25mm, THI 9-15MHz Linear Surgical Probe
  • 6V1, 3.9-11MHz/R11mm, THI 6-15MHz Endovaginal Probe (135 degree)
  • 6V3, 3.9-11MHz/R10mm, THI 6-15MHz Endovaginal probe (200 degree)
  • EC9-5, 9-5MHz/R8mm, micro-convex Endocavity probe (150 degree)
  • 7U2,10-5MHz/46mm, Linear transrectal probe
  • 2P1, 1.9-4MHz, THI 2.4-6MHz, Phased Array Cardiac Probe
  • 5P1, 4.2-8MHz, THI 5.4-11MHz, Phased Array Pediatric Cardiac Probe

Optional Biopsy guide for transducer

  • Biopsy guide for C344 probe
  • Biopsy guide for C362 probe
  • Biopsy guide for L741 probe
  • Biopsy guide for L742 probe
  • Biopsy guide for L743 probe
  • Biopsy guide for 10L1probe
  • Biopsy guide for L541 probe
  • Biopsy guide for 6V1 probe
  • Biopsy guide for 6V3 probe
  • Biopsy guide for EC9-5 probe (stainless)
  • Biopsy guide for EC9-5 probe (consumable)
  • Biopsy guide for 2P1 probe
  • Biopsy guide for 7U2 probe
