Ultrasound KX5100V
KX5100V Ultrasound Scanner
KX5100V Ultrasound Device
Ultrasound Scanner KX5100V
Ultrasound Machine KX5100V
KX5100V Scanner
Scanner KX5100V

Customer Reviews

Based on 7 reviews
Good but not great.

The KV5100V is ok but not if you want a clear picture. A vet came over and we tag teamed ultra-sounding the goats and his old tube TV unit was much more clear. I am not sure what to recommend but if I had to do over it would not be this one. I would probably get one that used standard probes as this one has a specialized connector for the probes which makes you limited in your choices.


We are very happy with the Kaixin KX5100V. Have had no issues with it and works very well in ultrasound preg testing our sheep, used on over 800 head so far.

Excellent value for money

I bought this model exactly 3 years ago. I have used and continue to use it for farm animal, equine (repro only) and small animal purposes, and it has not malfunctioned once. The batteries do last well after a complete charge, and the device is relatively easy to use. Picture quality/resolution is very good, for the price, IMO. I have only used the linear (rectal) probe, including improvising its use for small animal work, with generally good results. The small animal side of our mixed practice is not busy enough to warrant me buying the convex probe, but I will do, should things get much busier.

I had to make a bespoke wooden protective box and waterproof cover, to protect the device during farm/equine use, which took considerable effort. The device certainly isn't waterproof, but with minding, will last and serve well.

Very Pleased!

I tried out the Kaixin KX5100V ulrasound I bought today and I am very pleased with the picture quality. Love the protability though I will have to see if there is a neck strap or something to hold it up to leave my hand free to press the buttons to take measurements etc. However, as far as function goes I am very pleased with it so far.


We are very happy with the Kaixin KX5100V. Have had no issues with it and works very well in ultrasound preg testing our sheep, used on over 800 head so far.

On Sale


Regular price $4,999.00

Kaixin KX5100V is a demo model that was used for a few hours for photography. Comes with full warranty and one probe of choice.

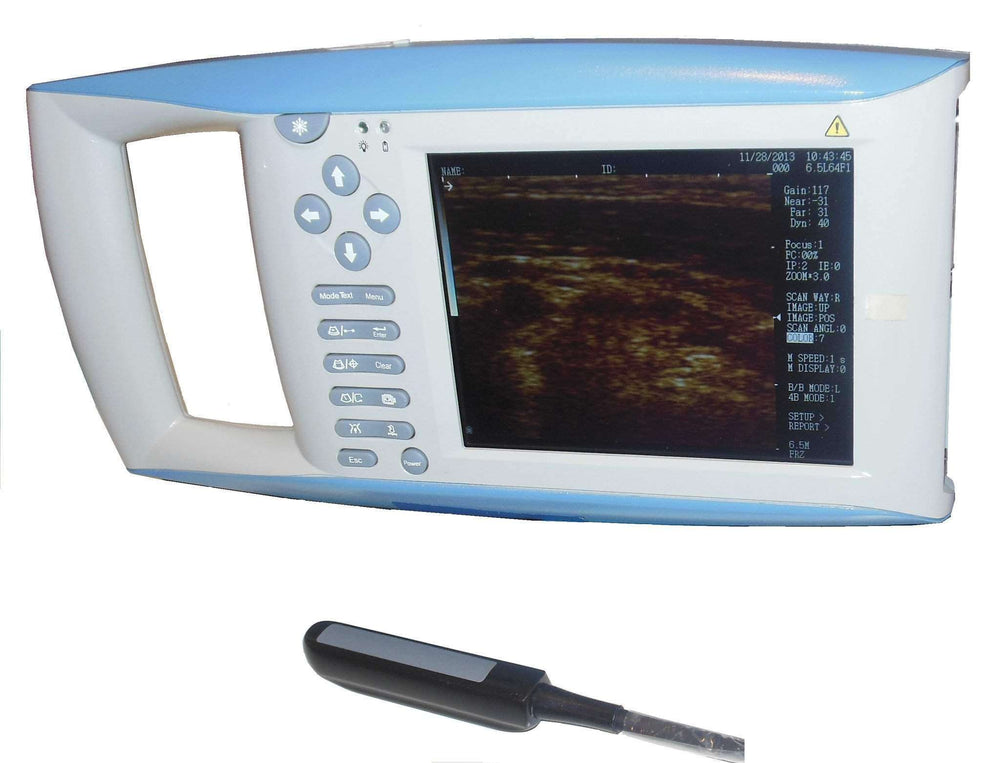

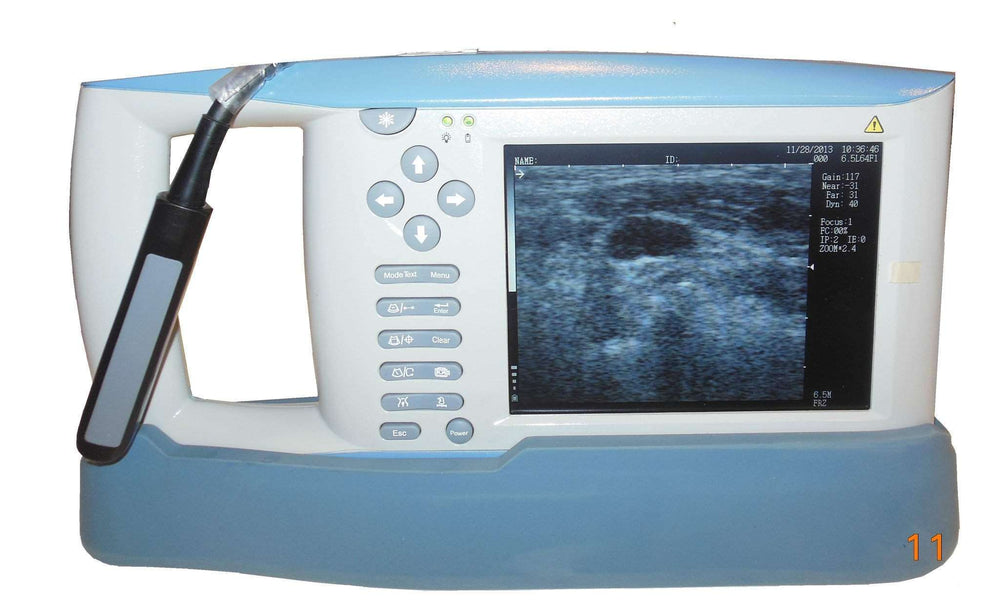

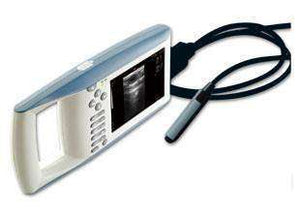

KX5100V is handheld diagnostic animal ultrasound scanner for pregnancy scanning. Suitable for large animals (bovine and equine), farm animals (goats, sheep, llamas) and pets (cats and dogs).


  • Full digital palm ultrasound scanner for veterinary
  • Product Feature
  • Digital Ultrasound
  • Multi functionality
  • This model has different kind of probes
  • only 3 Lbs-easy to carry
  • Comes with two batteries (works more then 2 hours)
  • Good image quality-Due to Digital technology
  • Electronic Probes: convex/electronic linear/ micro-convex
  • KX5100 has Real-time and harmonic imaging
  • Monitor: 6.4" high resolution non-interlaced SVGA display
  • Keyboard: Ergonomic keyboard
  • Gray scale: 256 levels
  • Display modes: B, B/B, B/M, M, or 4B
  • Speed in M mode: 1s, 2s, 3s, 4s, 5s, 6s, 7s and 8s
  • Magnification: ×0.8, ×1.0, ×1.2, ×1.5, ×1.6, ×2.0, ×2.4 and ×3.0
  • Focusing methods: Single-point, multi-stage transmitting, dynamic focusing
  • CINE loop: 256-frame
  • Zoom: Intelligent local zoom in real-time and frozen mode
  • Image storage and transfer: Built-in 100-frame image storage, USB Image transfer, Ultrasound working station
  • Image Processing: Depth enhancement/pan function, Left/right, positive/negative, vertical, horizontal flip and B/W conversion, angle change, image freeze/unfreeze, gamma correction, edge enhancement for image after-processing, gray transformation, gray rejection etc. Frame correlation function, Adjustment and display of near field, far field, total gain and dynamic range, Pre-processing: IP selection, dynamic range, edge enhancement, smooth, frame averaging, scanning angle selection, line density selection etc.

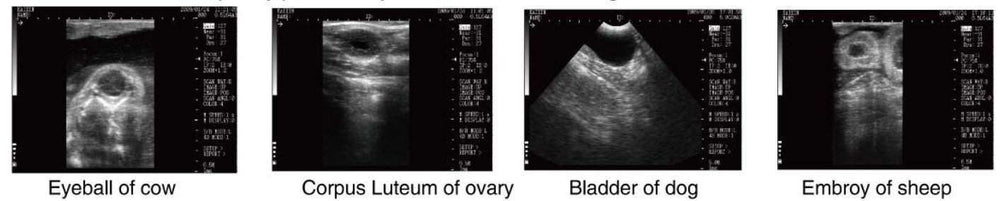

  • Measurements: B Mode: distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile etc. M mode: distance, time, velocity, heart rate etc. General veterinary software packages for abdomen, OB/GYN, small parts, urology, cardiology etc. Veterinary obstetric package including 10 tables, automatic calculation of EDD, BPD, GS, CRL, FL, HC, AD, AC, GA, FW and fetus weight, 4 veterinary body marks.
  • Report: Veterinary obstetric report
  • Documentation: Full screen documentation, hospital name, date/time
  • Power Supply: AC 100-240V~, 50-60Hz
  • Power consumption: ≤ 40VA

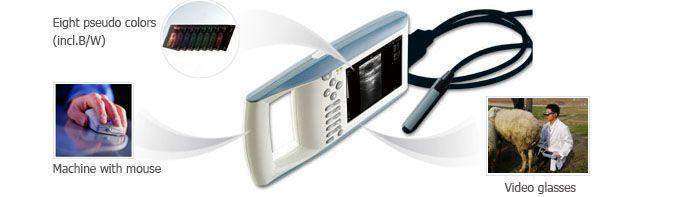

  • Others: 8 kinds pseudo-color, energy-saving, PAL-NTSC switchable
Application:  abdominal, urology, GYN, OB, small parts, pediatric, cardiology, biopsy

Standard Parts:
  • KX5100VET main unit
  • 6.4 high resolution non-interlaced LCD display
  • 1 probe connector
  • 256-frame CINE loop
  • 100-frame image storage
  • Veterinary measurement & calculation software packages
  • 6.5MHz linear veterinary rectal probe (for veterinary endorectal)
  • 4 veterinary body marks

Optional Probes:

  • 3.5MHz convex abdomen probe (for veterinary abdomen, GYN, OB, Urology)
  • 4.0MHz convex rectal probe (for veterinary endorectal)
  • 4.0MHz convex rectal probe with handle (for veterinary endorectal)
  • 5.0MHz micro-convex cardio probe (for veterinary cardio)
  • 6.5MHz linear veterinary rectal probe (for veterinary endorectal)
  • 6.5MHz linear veterinary rectal probe with handle (for veterinary endorectal)
  • 6.5MHz convex transvaginal probe (for veterinary endovaginal)
  • 7.5MHz high frequency linear probe (for veterinary small parts, orthopedics, breast, musculoskeletal)

Optional Parts:

  • Belt
  • Biopsy needle-guided brackets
  • Ultrasound working station
  • USB software with connection cable
  • Ultrasound goggles
  • Rechargeable power supply
  • Rechargeable power supply in car
  • Thermal printer (brand: Mitsubishi, model: P93W-S)
  • Pinter paper (cheap)
  • Pinter paper (expensive)

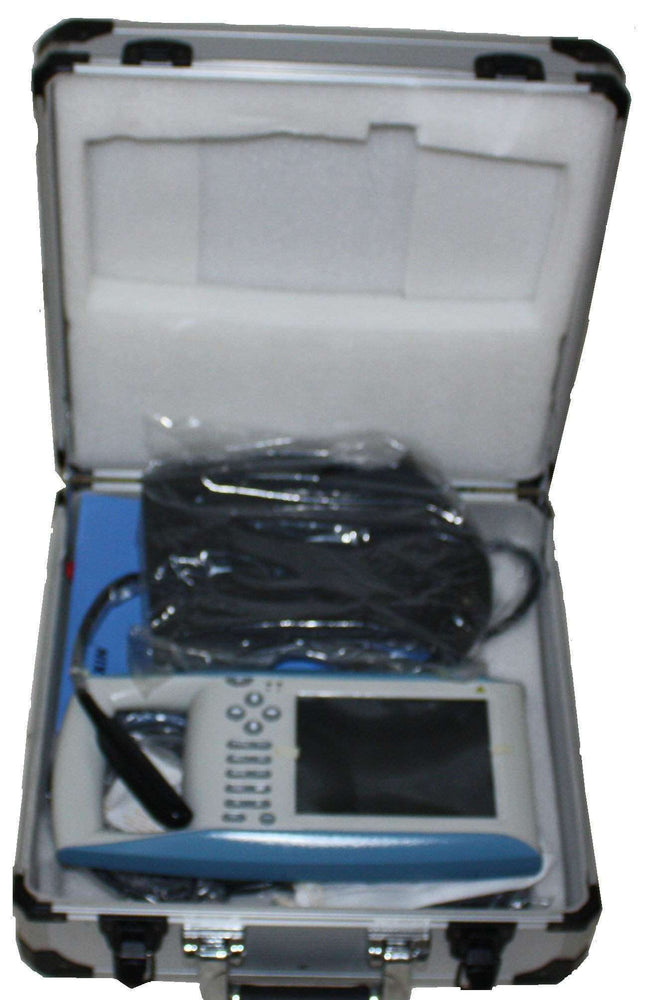

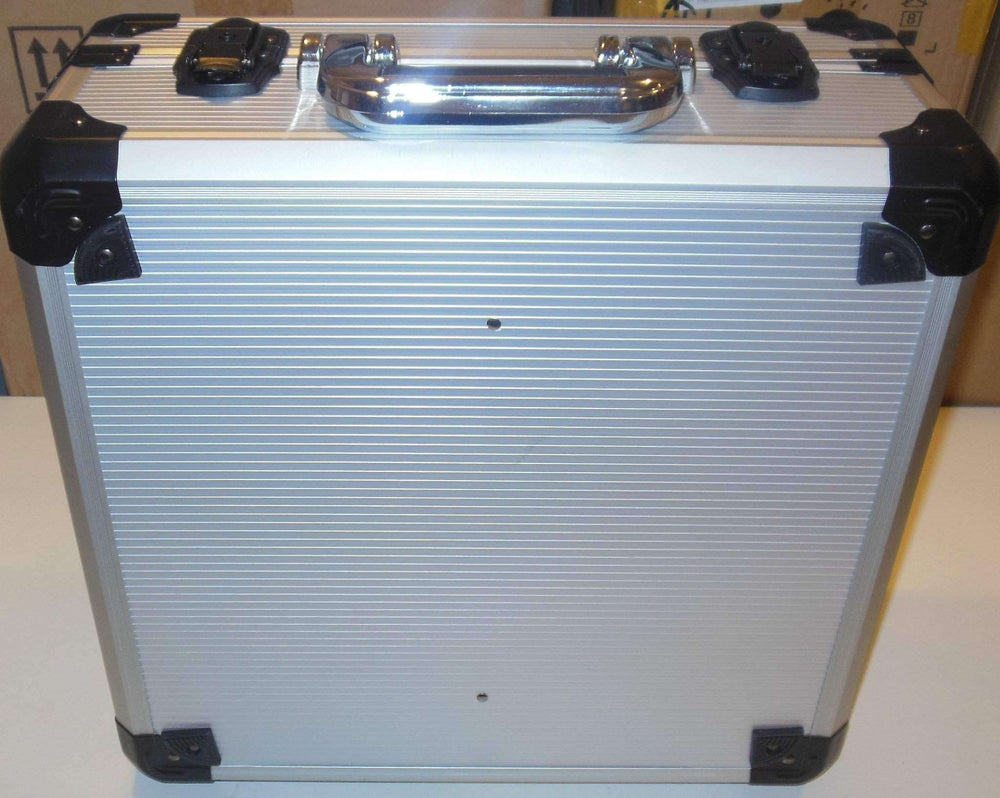

  • Packaging carton & metal case
  • Inspection CE ,TUV, ISO
  • Samples
  • Charge
  • Remarks
