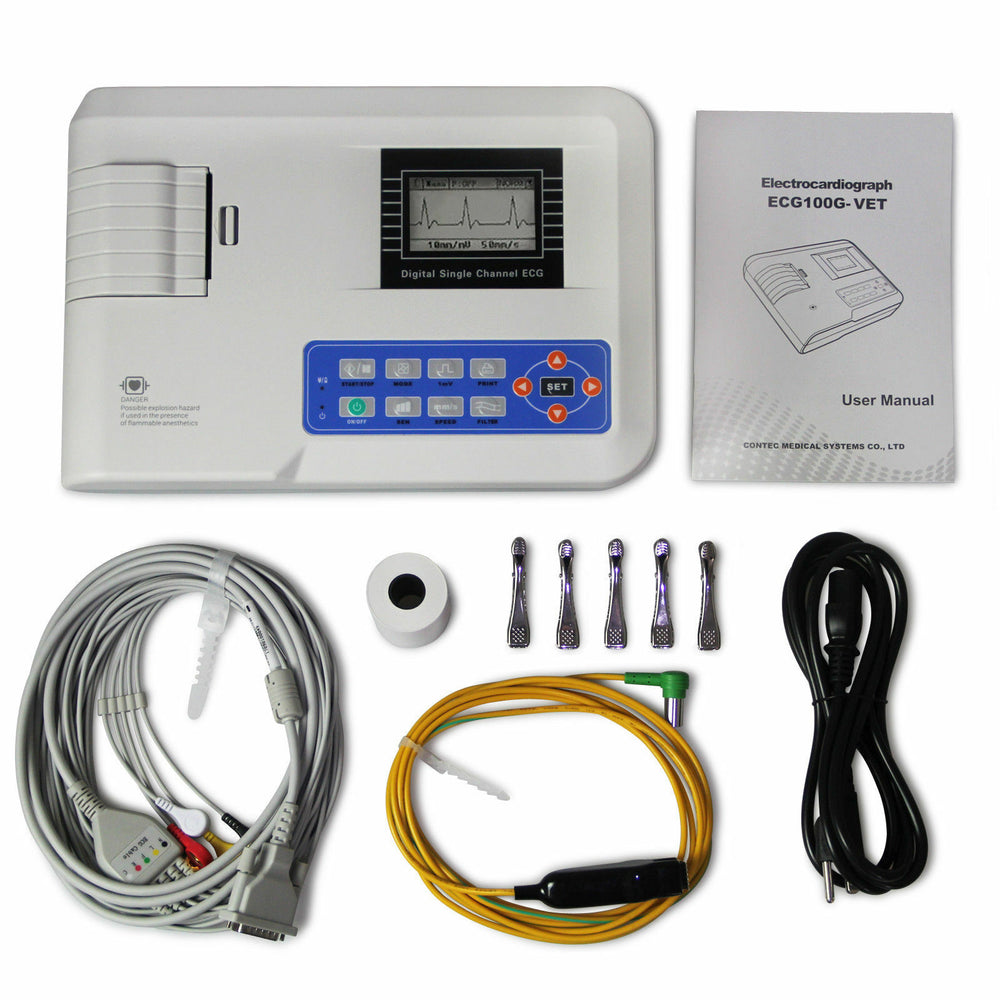

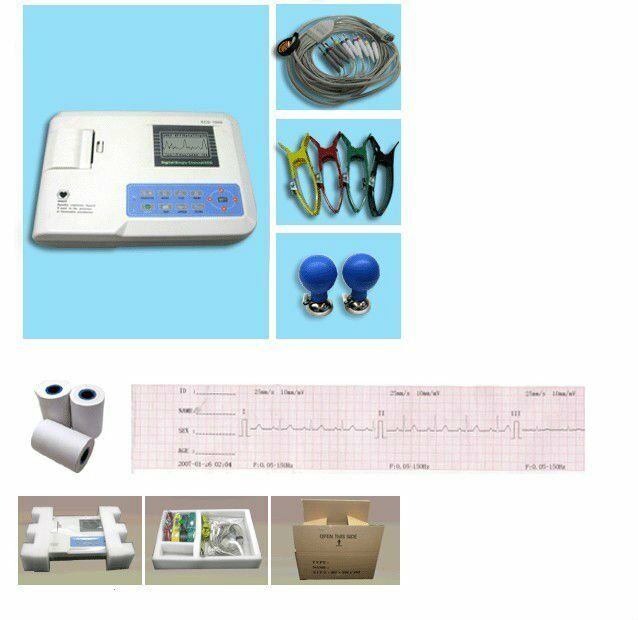

KM100G VET Veterinary ECG/EKG Machine Single-Channel Electrocardiograph
KM100G VET Veterinary ECG/EKG Machine Single-Channel Electrocardiograph
On Sale

KM100G VET Veterinary ECG/EKG Machine Single-Channel Electrocardiograph

  • -$-690.00
  • Regular price $690.00

    KeeboVet​​​​​​​

    High Quality
    Best Pricing
    Fast Shipping
    KM100G VET Veterinary ECG/EKG Machine Single-Channel Electrocardiograph
    KM100G VET Veterinary ECG/EKG Machine Single-Channel Electrocardiograph, Animal

    Features:



    High-resolution thermal printing array system

    Frequency response is as high as 150Hz

    Capable of printing continuously on channel trace and  annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status

    High resolution digital filter inhibits baseline drift  without affecting ECG waveform

    One-touch operation

    Concept of floating input circuit meets IEC safety   standard

    Rechargeable battery supporting more than 50 patient   examinations

    Lead Standard: 12 leads

    Specifications:

    Input Circuit   Floating; Protection against Defibrillator effect
    Standard 12 Leads, Lead change automatically
    Patient Current Leakage     <10μA
    Input Impedance  ≥10ΜΩ
    Calibrating Voltage   1mV±3%
    A/D Conversion    12 bit
    Frequency Response    0.05Hz~150Hz (IEC)
    Time Constant    >3.2seconds
    CMRR
    >80dB

    >100dB (with filter)


    EMG Filter    35Hz (-3dB) / 25Hz (-3dB)
    Sensitivity   1/2, 1, 2 (cm/mV), Conversion Deviation≤5%
    Recording System    Thermal-array
    8 dots/mm ( vertical )

    16 dots/mm ( horizontal, 25mmc )

    Paper Speed     25, 50mm/s±3%
    Recording Paper    50mm,20m, high-speed roll
    Input Circuit Current    ≤50nA
    Safety Standard   IEC class I, type CF
    Power Supply    AC: 220V / 110V, 50/60Hz

    DC: 12V rechargeable battery

    Skin Voltage Tolerance   ±300mV
    Noise Level   <15uVp-p

    Size:
    Dimensions   310mm×230mm×70mm

    Dimension of Packing   400mm×280mm×160mm



    Language  of operation interface:



    Chinese, English, French, Italian, Turkish, Spanish, German Kazakhstan, Russian. Print language include English, French, Italian, Turkish, Spanish, German Kazakhstan, Russian.



    Display and printing:



    Optional a display and print



    BUY NOW!

    Payment

    We accept payment by any of the following methods:

    PayPal



    Please pay as soon as possible after winning an auction, as that will allow us to post your item to you sooner!

    Shipping

    We offer FREE shipping on all orders in the USA!


    Your item has an extended handling time and delivery estimate is greater than 10 working days of receiving payment (Monday-Friday) after which you should expect to receive it as soon as possible.


    In the very unlikely event that your item is lost or damaged during post, then WE are responsible and will issue either a full refund or replacement.

    If you are not 100% satisfied with your purchase, you can return the product and get a full refund or exchange the product for another one, be it similar or not.


    You can return a product for up to 14 days from the date you purchased it.


    Any product you return must be in the same condition you received it and in the original packaging. Please keep the receipt.

    High Quality
    Best Pricing
    Fast Shipping
    KM100G VET Veterinary ECG/EKG Machine Single-Channel Electrocardiograph, Animal Features: High-resolution thermal printing array system Frequency response is as high as 150Hz Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status High resolution digital filter inhibits baseline drift without affecting ECG waveform One-touch operation Concept of floating input circuit meets IEC safety standard Rechargeable battery supporting more than 50 patient examinations Lead Standard: 12 leads Specifications: Input Circuit Floating; Protection against Defibrillator effect Standard 12 Leads, Lead change automatically Patient Current Leakage &lt;10&mu;A Input Impedance &ge;10&Mu;&Omega; Calibrating Voltage 1mV&plusmn;3% A/D Conversion 12 bit Frequency Response 0.05Hz~150Hz (IEC) Time Constant &gt;3.2seconds CMRR &gt;80dB &gt;100dB (with filter) EMG Filter 35Hz (-3dB) / 25Hz (-3dB) Sensitivity 1/2, 1, 2 (cm/mV), Conversion Deviation&le;5% Recording System Thermal-array 8 dots/mm ( vertical ) 16 dots/mm ( horizontal, 25mmc ) Paper Speed 25, 50mm/s&plusmn;3% Recording Paper 50mm,20m, high-speed roll Input Circuit Current &le;50nA Safety Standard IEC class I, type CF Power Supply AC: 220V / 110V, 50/60Hz DC: 12V rechargeable battery Skin Voltage Tolerance &plusmn;300mV Noise Level &lt;15uVp-p Size: Dimensions 310mm&times;230mm&times;70mm Dimension of Packing 400mm&times;280mm&times;160mm Language of operation interface: Chinese, English, French, Italian, Turkish, Spanish, German Kazakhstan, Russian. Print language include English, French, Italian, Turkish, Spanish, German Kazakhstan, Russian. Display and printing: Optional a display and print
