KM-31 Veterinary Animal Multi-parameter ECG Wave Monitor, Bluetooth, App Use
KeeboVet
Pet hospitals and homes. At the same time, it can be freely combined with other medical devices, which can greatly improve the level and function of primary medical products and provide an excellent platform for the improvement of pet treatment and management level.
It can detect various animal physiological parameters (including SpO2, blood pressure, pulse rate, ECG, respiration, temperature,etc.) with high accuracy.
And we can provide series probe products according to different parts and different size of animals.
2.4‘’TFT LCD, display parameters and waveform.
1800mA lithium battery inside,12 hours continuous work.
Only one button, easy to operate.
Bluetooth inside can be connected with other smart devices. Features
Through serial port, USB or Bluetooth, the data can be transfer to PC or other smart devices. It is widely used in types of surgery in the pet emergency centers and pet hospitals.
Specification
Operation system |
Android |
ECG |
Waveform: Lead I Band width 0.05Hz-100Hz(3dB) diagnose mode 1-40Hz monitor mode 0.1-25Hz operation mode |
Resp |
\ |
Temp |
Type: Vascular/surface temperature Scope: 20℃-50℃ Accuracy: ±0.2℃ |
NIBP |
Detection scope: Systolic blood pressure: 4kPa-34kPa(30-255mmHg) Diastolic pressure: 2kPa-29.3kPa(15-220mmHg) Mean pressure: 2.7kPa-31.3kPa(20-235mmHg) Detection accuracy: Static pressure:±4mmHg |
SpO2 |
Detection scope: 35%-100% Accuracy: ±2% 80%-100% ±3% 70%-79% |
Heart rate |
Scope: 15bpm to 300bpm Accuracy: ±1bpm |
AC adapter |
Input:AC100-240v-200mA Output:DC 5V 1A |
Bluetooth |
Support both Bluetooth 3.0 and BLE 4.0 |
Built-in-Battery |
3.7V,1800mAh lithium battery |
Service life |
Over 10000 times |
Size |
145mm*85mm*37mm |
Weight |
240g |
Display |
2.4 inch color TFT LCD |
Key |
Power on and perform functions |
Delivery time |
Samples: about 2 days |
Mass production: about 15 days (2000pieces) | |
OEM: about 25 days |
How to Use the App
1. Search “Berry Monitor” or “Berry Monitor for pad”app on the Google Play.
And Register an account
2.Launch SpO2/NIBP/ECG/TEMP
3. Display the results on the screen.

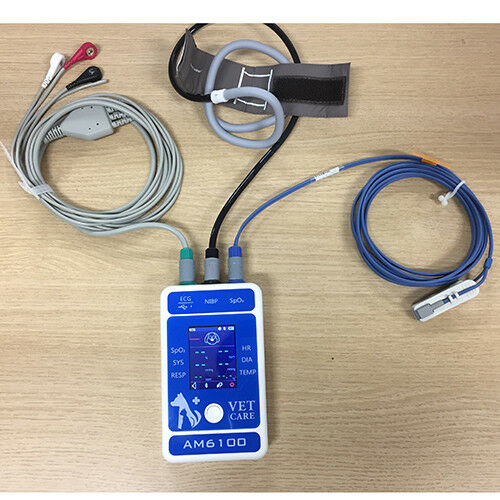

Packing Details
- 1 x ECG cable,
- 1 x Temp sensor
- 1 x Spo2 sensor
- 1 x Nibp cuff
- 1 x Nibp tube
- 1 x Electrode Pad
- 1 x USB Charging line
- 1 x 5 leads ECG cableanual
Size of box 16*22*10cm
N.W of patient monitor 250G
N.W of box 1000G
