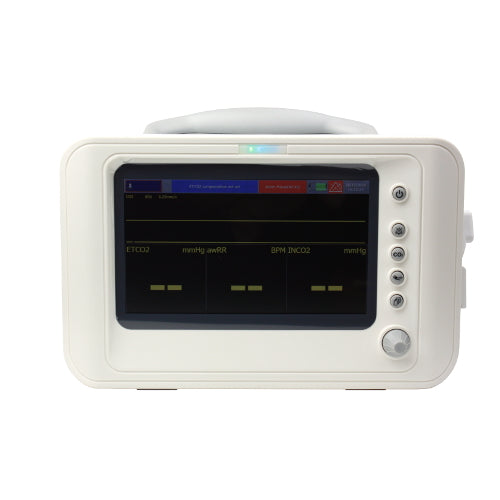

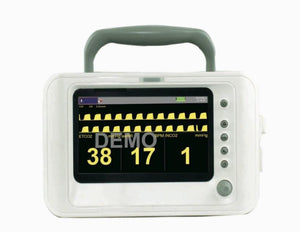

KM-13C EtCO2 RESP Patient Monitor
KM-13C EtCO2 RESP Patient Monitor
On Sale

KM-13C EtCO2 RESP Patient Monitor

  • -$-1,999.00
  • Regular price $1,999.00

    KM-13C is a portable affordable patient monitor build with a durable design. Standard functions are EtCO2 and Respiratory. All accessories are included.

    Features
    • 7" Color TFT Display, led backlight, 800x600 pixels.
    • Operating Mode Selection: Neonatal/Pediatric/Adult.
    • Visual and Audio alarms, adjustable.
    • Patient management, name and age and id.
    • Network with Central Station Software,
    • Built-in removable and rechargeable lithium battery,
    • Easy operating UI with both Keypad menu.
    • Powerful data storage and management, Trend graph, Trend table, etc
    • Arrhythmia analysis and S-T segment analysis.
    Standard Parameters
    • EtCO2, RESP
    Optional
    • Touchscreen, Thermal Recorder

    EtCO2

    • Method: Non-dipersive infrared; autocalibrating
    • N2O Compensation: Manual; On/ Off, user selectable Range: 0 to 114 mmHg ; 0 to 15 % Flow, Sample rate : Sidestream ; 50 ml/min
    • Accuracy: + / - 2 mmHg or 5 % of reading

    Printer (optional)

    • Type Thermal printer
    • Paper Speed 25 or 50 mm/sec

    Trends

    • Memory 96 hr at 30-second intervals for an NIBP reading every 5 minutes
    • Display trabular; graphical
    Respiration Rate
    • Rate Adult: 0 ~ 120 rpm | Neo/Ped 0 ~ 150 rpm
    • Resolution1rpm
    • Accuracy± 2 breath/min
    Physically
    • Power Source 110V-240V, 50/60Hz
    • Weight Approximate 1.7 Kg
    • Audio volume adjustable 1 ~4 level
