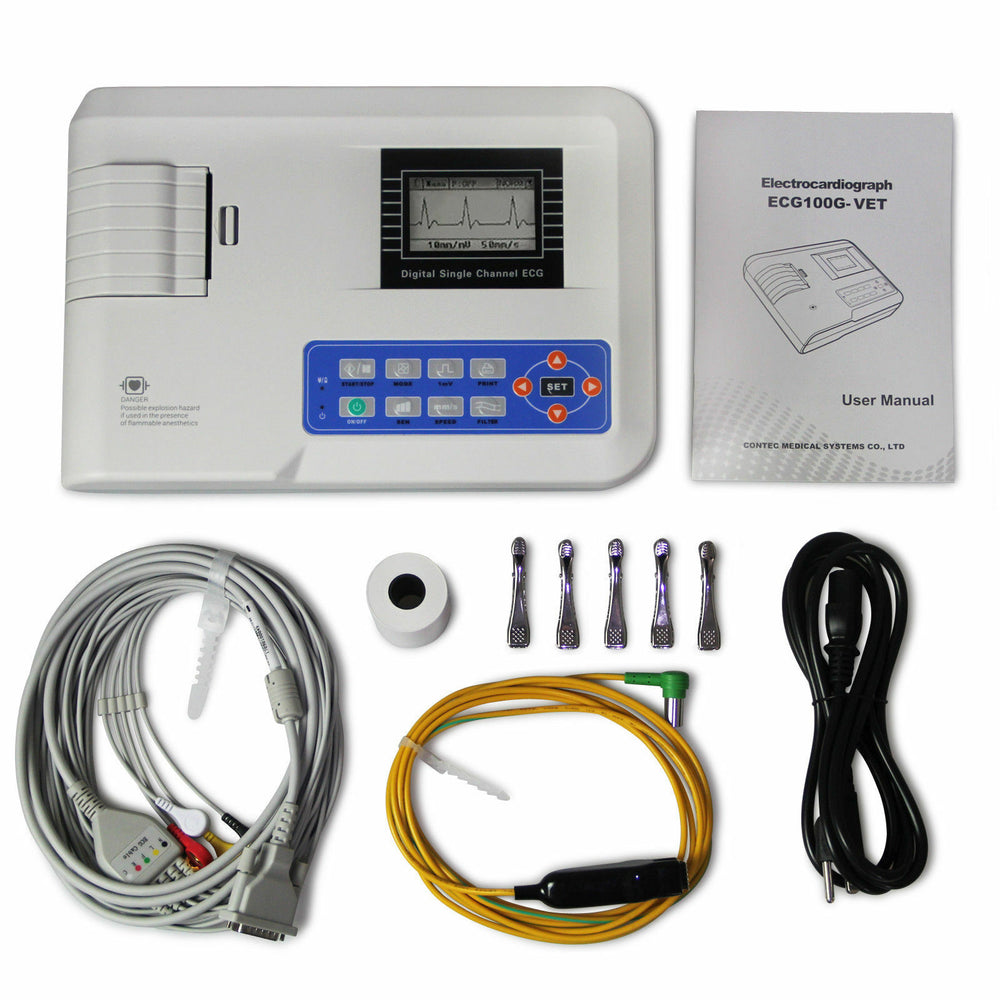

Digital Single Channel 12-lead ECG/EKG Machine Electrocardiograph

Sale price

Regular price $399.00
( / )

FDA & CE Approved Portable Digital Veterinary ECG Machine

Model No.: ECG100G


  • High-resolution thermal printing array system
  • Frequency response is as high as 150Hz
  • Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status
  • High resolution digital filter inhibits baseline drift without affecting ECG waveform
  • One-touch operation
  • Concept of floating input circuit meets IEC safety standards
  • Rechargeable battery supporting more than 50 patient examinations
  • Lead Standard: 12 leads


  • Input Circuit Floating Protection against Defibrillator effect
  • Standard 12 Leads, Lead change automatically
  • Patient Current Leakage A/D Conversion
  • 12 bit Frequency Response: 0.05Hz~150Hz (IEC)
  • Time Constant: >3.2seconds CMRR>80dB >100dB (with filter)
  • EMG Filter 35Hz (-3dB) / 25Hz (-3dB)
  • Sensitivity 1/2, 1, 2 (cm/mV)
  • Conversion Deviation 5%
  • Size: 310mm x 230mm x 70mm
  • Dimension of Packing: 400mmm x 280mm x 160mm
  • Language of operation interface: Chinese, English, French, Italian, Turkish, Spanish, German Kazakhstan, Russian. Print language include English, French, Italian, Turkish, Spanish, German Kazakhstan, Russian.
  • Display and printing: Optional a display and print

Recording System

  • Thermal-array: 8 dots/mm (vertical) 16 dots/mm; (horizontal, 25mmc)
  • Paper Speed: 25, 50mm
  • Recording Paper: 50mm, 20m, high-speed roll
  • Safety Standard: IEC class I, type CF

Power Supply

  • AC: 220V / 110V, 50/60Hz
  • DC: 12V rechargeable battery
  • Skin Voltage Tolerance: 300mV
  • Noise Level: <15uVp-p
