Chison Q6 Color Doppler
Ultrasound Chison Q6 Color Doppler
Color Doppler Chison Q6
Chison Q6

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
On Sale

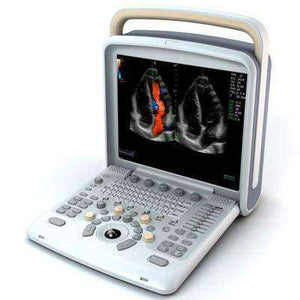

Chison Q6

Regular price $19,999.00

The Chison Q6 is a compact veterinary color Doppler ultrasound system.  It offers superb image quality and complete functionality to provide full diagnostic capabilities at the point of care.  Its lightweight package offers flexibility and mobility, especially meet the needs of physicians' transportation and out-door examinations.

A work-flow oriented user interface provides user-friendly operation with minimum soft key entry.  Ergonomically design of keyboard, 15 inch LCD large display, double probe connectors, make every scan COMFORTABLE and EASY which allow users to focus more on the patients.  Some features of Chison Q6 are listed below.

Speckle Reduction Algorithm (SRA)- SRA is the technique that uses a variety of denoising algorithm to suppress speckle, smooth the B mode images, and make the faint edge more appearing.

Multiple Compound Imaging (MCI)-   Increase the line density and improve the image quality, improve the contrast resolution and decrease the sidewall effect of the edge on the tissue and make the edge of the anatomical structure more distinguishable

Normal Multiple Compound Imaging-   Tissue - the shadow created by the sound wave

Single beam-former-   IMT Calculation Automatically trace the intima, automatically measure the thickness of the intima.  Multi-Beam former Conventional color Doppler ultrasound system using single beamformer technology, thus using one beamformer to process one group of echo signal for imaging.  While Chison Q6 using multi-beamformer technology, that is using multi beamformer to process one group of echo signal which can greatly improve the speed of imaging processing, especially enhance CFM frame rate.

Imaging modes

  • B,2B,4B,B/M
  • CFM,B/BC
  • PW,HPRF,CW
  • PD,DIrectional PD
  • Instant Triplex,Duplex
  • TrapezoidaI
  • Panoramic
  • TSS
  • Free-hand 3D(optional)*
  • Chroma B/M/PW/CW

Probes

  • EIectronic Convex,EIectronic Linear,Electronic Micro-Convex,Phased Array
  • Wideband(broadband)Multi-frequeincy

Image Processing Technology

  • Double Phase Digital Beam Forming(DPDBF)
  • THI on all probes
  • Speckle Reduction Algorithm(SRA)
  • Multiple Compound Imaging(MCI)

Measurement & Report packages

  • Canine: GS,GRL,HD,BD
  • Feline: HD,BD
  • Equine: GS
  • Bovine: BPD,CRL,Trunk Diameter
  • Ovine: BPD,CRL,Trunk Diameter

Professional Clinical Applications

  • Abdominal
  • Cardiac
  • Vascular and Small parts
  • Reproduction

Standard configuration

  • Main unit
  • 15"LCD
  • 2 probe connectors
  • large-capacity memory
  • 2 USB ports
  • Video out,TV out,LAN port,VGA out

Optional

  • 3.5MHz Convex probe
  • 7.5MHz Linear probe
  • 6.0MHz Micro-convex probe
  • 3.0MHz Phased Array probe
  • 6.0MHz Phased Array probe
  • 5.0MHz TEE probe
  • Extended Cardiac Package: ECG,Free Steering M,Color M,TDl,lMT,Advanced Cardiac
  • Measurement Software
  • Biopsy kit is available(probe dependent)
  • Video printer,PC printer
  • Trolley
  • DICOM3.0
