On Sale

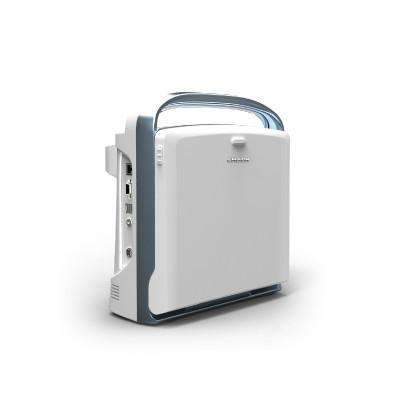

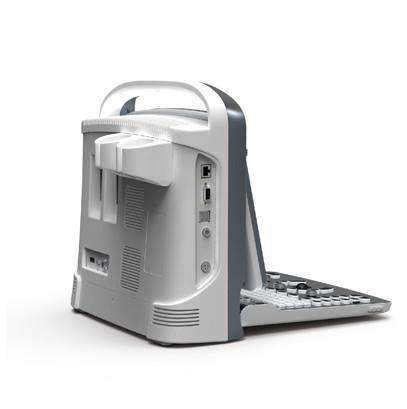

Chison ECO1Vet Used

Regular price $2,999.00

Premium design at an affordable price!

This ECO1Vet machine was used for about 6 months and comes with one probe of choice.

ECO1Vet is an affordable and high quality hand carried portable Sonogram machine. Good for equine, bovine, and farm animal sonography. Light weight machine boasting brilliant image quality. The excellent image quality of Chison ECO 1Vet makes for a very reliable ultrasound diagnosis for pregnancy checking in all kinds of animals. Can be used for sex determination, measurement of follicles, and heat detect of cattle and mares to determine best time for insemination. Very high frequency probe.

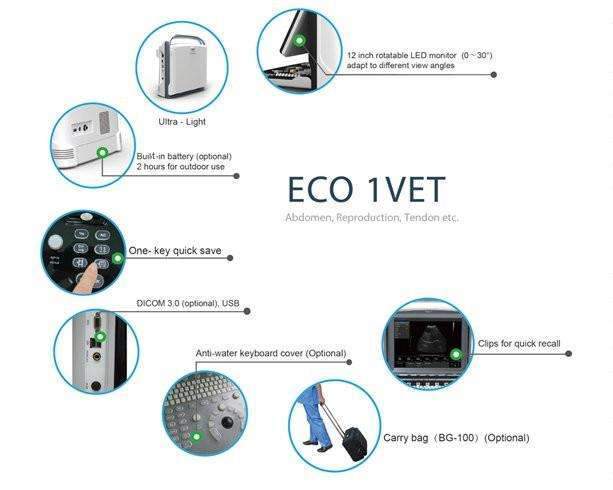

ECO1 Vet has a streamlined workflow with real time image save, one key image save for still image and cine loop (most ultrasounds have complicated image save with many steps). Saved image and cine loop are right on the screen to make for easy browsing.  Images and cine loop can be sent to USB, and read on PC (most black and white ultrasounds can not read cine loop on PC).

Features

  • Premium Design at an excellent price
  • Applications for large animal include reproduction and tendon
  • Applications for small animals include checking abdomen, small parts, and basic cardiology

Software Packages:

  • Canine: GS,CRL, HD, BD
  • Feline: HD, BD
  • Equine: GS
  • Bovine: BPD, CRL, Trunk Diameter
  • Ovine: BPD, CRL, Trunk Diameter

Specifications

  • Display Modes: B, B/B, 48, M, B/M
  • Gray Scale: 256 Levels
  • Scanning Depth: 240mm Max (depends on the probe types)
  • Probe Frequency: 2.5MHz - 11MHz (Depend on the probe types)
  • One connector (Standard )
  • Cine Loop: 256 frames
  • Zoom: 4 steps

General Measurements

B mode: distance, circumference, area, volume, ratio, angle,% stenosis, histogram, profile, etc.
M mode: distance, time, velocity, heart rate, etc.

Archives Management

Patient information management, Patient images record, Patient exam report

Documentation

Full screen documentation, Hospital name, Patient name, Date/time
Annotation database available, Pre-saved phrases can be recalled

Power Supply

AC 240V-100V, 50Hz- 60Hz

Standard Configuration included

Main unit + L7M-A Linear (5.3MHz-10.0MHz) probe + 1probe connector + 3 USB ports + VGA port + Video port + LAN port, Built-in Battery, DICOM 3.0, Carry bag (BG-100), Support PC Printer* (HP P2055D)

Options

2 probe connectors, Anti-water keyboard cover, , TR-8000 Trollet

Probes

  • C3-A: 3.5MHz Convex(2.5MHz to 5.0MHz) For Abdomen, Large animal
  • L7M-A:7.5MHz Linear(5.3 MHz to 10.0MHz) Application: Small parts, vascular of small animal or Equine tendon
  • MC6-A :6.0MHz Micro-Convex(4.5MHz to 8MHz) used in: Abdomen, cardiac, urology, OB/GYN Small animal: 10kg
  • L7V-A: 7.5MHz Linear rectal(5.3MHz to 10.0MHz) Application: Reproduction, OB/GYN, Large animal
