On Sale

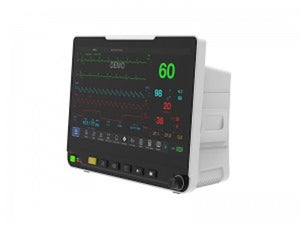

Animal Vet Multi-Parameter Veterinary Monitor with EtCO2

Sale price

Regular price $3,699.00
( / )

Animal Vet Multi-Parameter Veterinary Monitor with EtCO2  12" screen

High Accurate and reliable. EtCo2 function included.


Measuring Range: 15℃~50℃

Measuring error: ± 0.1℃

Resolution: 0.1℃

Accuracy: ± 0.2℃ (including sensor)


Standard configuration: permanent body temperature probe

Optional configuration: esophageal temperature probe, rectal temperature probe

Alarm: all monitoring parameters can be set for alarm limit, and it has a sound and light alarm function, also can turn-off the alarm when doctors noticed.


  • 13.3 inch color LCD, full view display, high resolution 1366×768dpi;
  • Standard parameters: ECG, SpO2, NIBP, RESP, Temperature, Heart Rate;
  • 10 levels adjustment for the brightness of screen;
  • Double over-pressure protection from NIBP software and hardware to ensure patient safety;
  • 4 operation languages optional, friendly operating system, convenient input for patient information;
  • Parameter color adjustment function, medical staff can define the color of background /  waveform / font;
  • International standard, sound and light three-level alarm, more safe and more professional;
  • Adjustable volume: 5 levels;
  • Large capacity built-in lithium battery, continuous working time not less than 300 minutes;
  • When the waveform screen is frozen, real-time parameters are continuously displayed in the parameter area. The frozen waveform can be flipped back and forth along the time axis; Support USB firmware upgrade, good maintainability;
  • Support central monitoring system access to the HL7 protocol;
  • Support WIFI, Bluetooth and other transmission functions;
  • HDMI HD video output;
  • Optional for built-in thermal matrix recorder, three trace waveform;
  • Very short boot time, 10 seconds into the working state;
  • Reserved ETCO2 interface to support plug-and-play CO2 module.



Leads: 3/5 leads; most 7 ECG calculation leads can be

displayed on the screen Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V leads

Measuring range: 20 ~ 300bpm

Resolution: 1bpm

Accuracy: the bigger one between ± 2% or ± 2bpm

Frequency response: 0.67Hz – 40Hz

S-T segment monitoring: -2.0mV ~ 2.0mV

Electrode drop indication: sound and light indicator

Sweep rate: 6.25, 12.5, 25, 50mm/s

Gain: ×0.125, ×0.25, ×0.5, ×1, ×2, ×4, Auto

Electrical calibration: 1mV + 5%

Protection isolation withstands 4000V/AC / 50Hz

Lead cable: 3/5 lead

Standard configuration: universal adult ECG cable

Optional configuration: special ECG cable for Neonate and Pediatric

Alarm: upper and lower limits of alarm value can be set, automatic memory
