On Sale

WED-3100Vet

Sale price

Regular price $3,999.00
( / )

Good choice for Vet echocardiography!

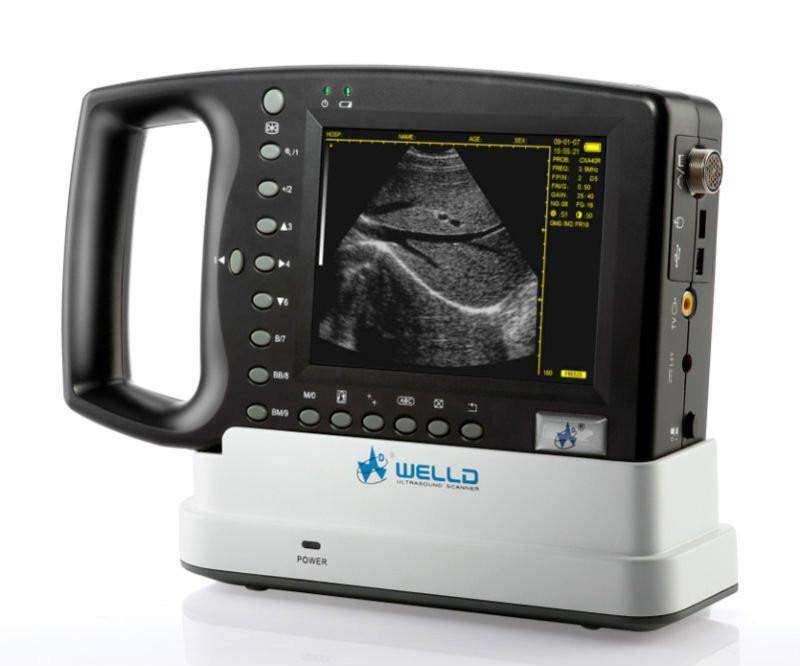

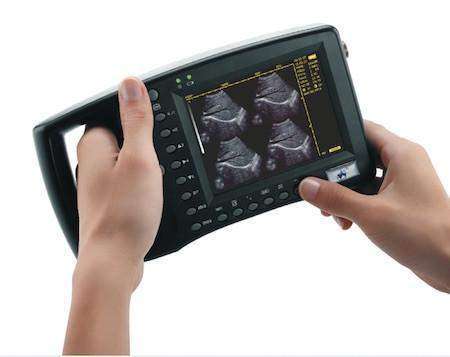

WED-3100Vet Palm Size Digital Ultrasound Scanner offers multi-frequency animal rectal probe 5.0/6.5/7.5 MHz. Its small size make it very convenient to carry anywhere needed. Being compact in size, it offers excellent image quality.

Preferred for use in large animals and for echocardiography of horses. Good equine diagnostic ultrasound. It is also suitable for farm and equine hospitals. Offers Doppler function- heart rate. It is FDA approved for Human use.  Features of WED-3100Vet are listed below.

Main Features

  • Net weight: 700g
  • 5.0 inch TFT LCD
  • Easy-to-use GUI menu
  • Low power consumption
  • USB 2.0 For real-time picture uploading to PC
  • Full digital beamforming technology
  • Probe automatic identification
  • Gama correction, Color encode, Image Smoothen

Technical Specification

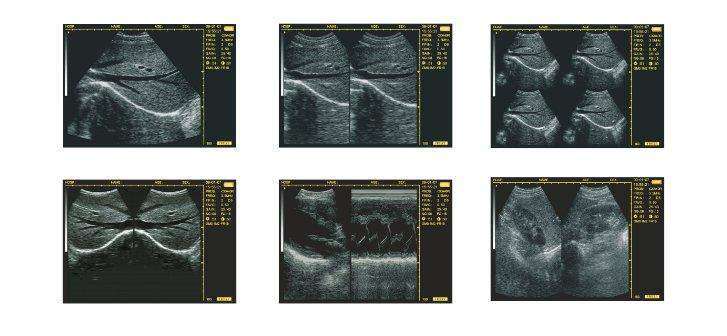

  • Display Modes: B, B+B, B+M, M, 4B
  • Scanning Depth: 80-220MM
  • Gray Scales: 256
  • Cine-loop: 400 frames
  • Image Permanent Storage: 128 Frames
  • Image Conversion
  • Measurements: distance, circumference, area, volume, EF rate, heart rate, Time
  • OB Measurements: BPD, GS, CRL, FL, HC, AC, EDD, GA, FW
  • Port: Video (PALD, NTSC), USB 2.0, Mouse
  • Monitor: 5" TFT color LCD
  • Body marks: 40
  • Comments: date&time, name, sex, age, hospital, etc.
  • Applications: abdominal, OB/GYN, urology, cardiology
  • Weight: 700 gr
  • Dimensions: 230mm X 120mm X 38mm
  • Battery Working: >3 hours

Probes

  • 3.5MHz Convex Probe Frequency range: 2.5MHz, 3.5MHz, 5.0MHz
    • Application: Abdomen, GYN, OB, Urology
  • 7.5MHz Linear Probe Frequency range: 6.5MHz, 7.5MHz, 8.5MHz
    • Application: Small Parts
  • 0MHz Micro-Convex Probe Frequency range: 4.5MHz, 5.0MHz, 5.5MHz
    • Application: Pediatric, Cardiac
  • 5MHz Transvaginal Convex Probe Frequency range: 5.5MHz, 6.5MHz, 7.5MHz
    • Application: Transvaginal, Endorectal
  • 7.5MHz Endorectal Linear Probe Frequency range: 6.5MHz, 7.5MHz, 8.5MHz
    • Application: Endorectal

Standard configuration

  • 3.5MHz convex probe (Frequency range: 2.5MHz, 3.5MHz, 5.0MHz)
  • SP-3 power adapter
  • Mouse

Options

  • 5.0MHz micro-convex probe (Frequency range: 4.5MHz, 5.0MHz, 5.5MHz)
  • 7.5MHz HF linear probe (Frequency range: 6.5MHz, 7.5MHz, 8.5MHz)
  • 6.5MHz endo-vaginal probe (Frequency range: 5.5MHz, 6.5MHz, 7.5MHz)
  • 7.5MHz endorectal linear probe (Frequency range: 6.5MHz, 7.5MHz, 8.5MHz)
  • Video Printer, Extra battery, Car charger
