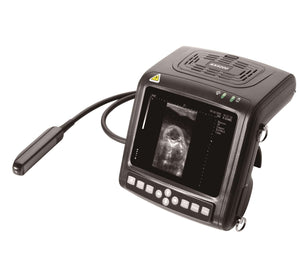

KX5200V Demo

KX5200V Wrist Ultrasound demo model comes with rectal probe and goggles.

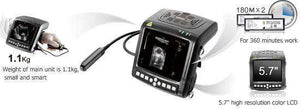

KX5200V boasts the best image quality of all like models. This is a very practical and handy machine for working with large animals.  Can be worn on the wrist like a watch and is easy to operate and manipulate.
The screen is 5.7" high resolution non-interlaced LCD providing better image quality. This digital machine offers multiple functions, variety of probe choices and extensive veterinary clinical applications.

Features of KX5200V:

• Wrist design, multiple patents in one, smart and light, convenient for carrying, easier for examining patients at home.
• 5.7" high resolution color LCD, high brightness, high contrast, wide visual, image clear and exquisite.
• Menu operation，Language: Chinese/English.
• 100 frames permanent storage, 256 frames cine loop.
• Eight pseudo colors (incl.B/W).
• High speed USB port support high-capacity U disk, and support the color laser printer print out all kinds of images and reports which make the output of diagnosis more convenient and simple.
• Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to video recorder and ultrasonic working station.
• Optional mouse
• Freeze or unfreeze image by shutter release.
• Adopted AC and DC to supply power, equipped with two pcs of high-capacity lithium batteries which can make machine work more than 200 minutes.
• Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.
• 5.7" High resolution color LCD, high brightness, high contrast, wide visual, suitable for outdoor use.
• Language: Chinese/English.
• Single probe socket,supports several different probes and will automatically read probe when connected.
• Body mark: 64 body marks with probe position.
• Display mode:B,2B,4B,B/M,M, total 5 kinds.
• 8 kinds of Magnification, maximum display depth is 240mm.
• Gain range:0～127dB.
• Dynamic range:27～90dB.
• Gray:256.
• Intelligent TGC control: near-field and far-field adjustment.
• Adjustable and intelligent focus.
• Frame frequency:30 frames/second.
• Pseudo-color: 8 kinds (incl. B/W).
• Permanent image storage: 100 frames.
• Cine loop:256 frames.
• Puncture guiding function（ 2 guiding lines, angle and position adjustable）.
• General measurement:distance,perimeter, area , volume, heart rate, GA, EFW, EDD.
• Obstetric measurement and analysis: 15 kinds of obstetric tables, several GA measurement and OB report.
• USB port support large capacity U disk (support document management/software upgrades/one-key storage), and color laser printer directly print various images and reports.
• Adapter rating:100-240V～,50-60Hz,70VA. Output of adapter: DC12V 3.0A. Maom device rating:DC12V 3.0A.
• Dual power supply. Power:AC110/230V -15％～＋10％(self-adaption supply voltage) 60/50Hz±1Hz.
• Battery: high-capacity lithium Battery(2400mAh), more than 200 minutes work.
• Net weight:1.1kg.
• Main unit size:155x180x80mm（length x width x thickness）

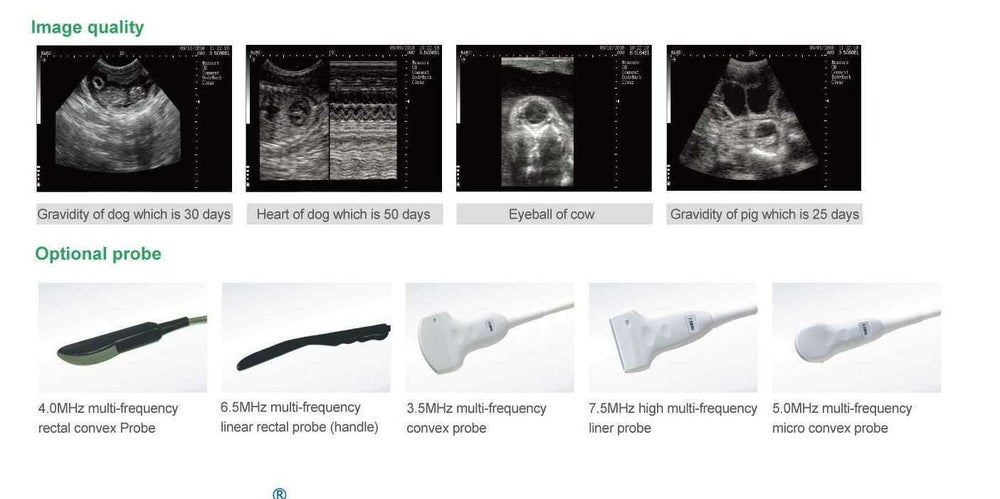

Optional Probes

• 3.5MHz convex abdomen probe (for veterinary abdomen, GYN, OB, Urology)
• 4.0MHz convex rectal probe (for veterinary endorectal)
• 4.0MHz convex rectal probe with handle (for veterinary endorectal)
• 5.0MHz micro-convex cardio probe (for veterinary cardio)
• 6.5MHz linear veterinary rectal probe with handle(for veterinary endorectal)
• 6.5MHz convex transvaginal probe (for veterinary endovaginal)
• 7.5MHz high frequency linear probe (for veterinary small parts, orthopedics, breast, musculoskeletal)
