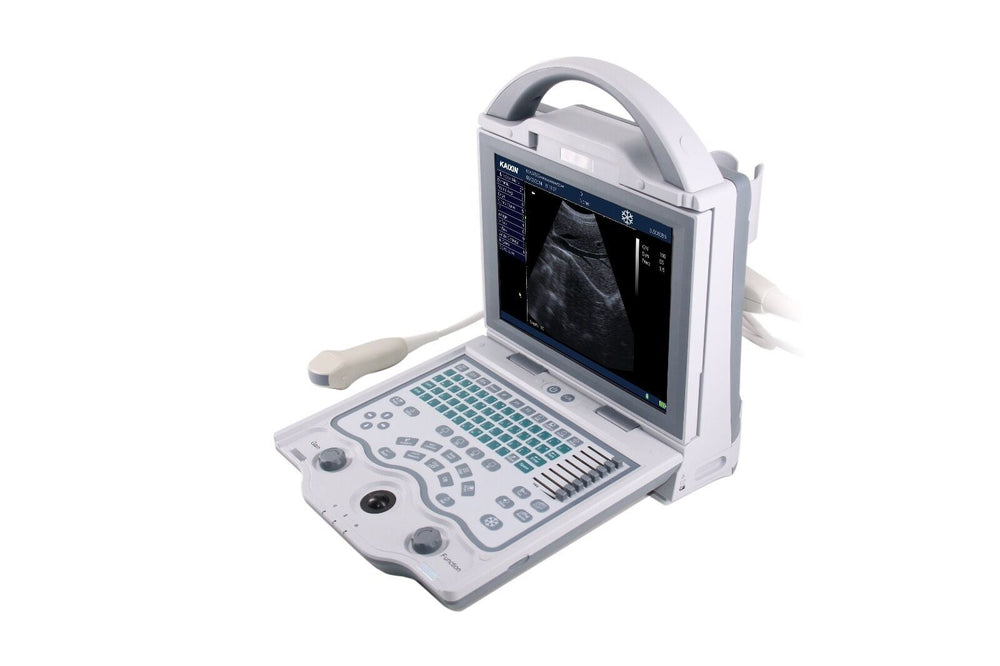

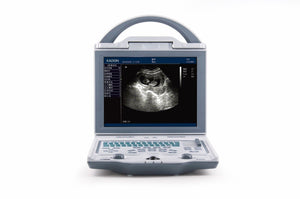

Newest-Light Weight Portable Ultrasound & One Probe, DICOM, LED screen

• DICOM included
• LED screen
• With one probe of choice.
• Warranty
• Free shipping to USA and Canada
• Return Policy: 30 days and we pay shipping within USA

• Lightweight at only 10 lbs, including battery and probe.  Similar ultrasounds are around 20 lbs.
• Large 10.4" LED screen, with full screen image.
• Two standard probe connectors
• Standard DICOM
• (Digital Imaging and Communications in Medicine (DICOM) is a standard for handling, storing, printing, and transmitting information in medical imaging. It includes a file format definition and a network communications protocol.)

• Battery included, with 4 hours standard battery life.
• LED monitor allows outside work in sunlight without a sun shade.
• Anti-dust and anti-spalsh keyboard is convenient for outside conditions.
• Affordable price, similar models sell for above $4,999.
• 70mm rectal probe lens and 70mm wide image. Wide image is good for seeing big follicles in large animals.

• 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle.
• Adopt ARM7 embedded control system + FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
• Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese
• Two probe sockets, auto-identify different optional probe
• Display mode：B、2B、4B 、B/M、M
• Adjustable depth: 10 grades, max depth to 236mm
• Gain：0～127dB
• Contrast：27～90dB
• Gray scale：256
• 8 steps intelligent TGC
• 8 kinds pseudo colors
• Image storage: 4G hard disk to permanently store about 5000 frames images
• Cine loop：256 frames
• Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)
• the gravel software package with real-time position line measurement
• Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.
• Cardio measurement：Depth, slope, heart rate, cycl；
• OB measurement including:
• Other measurement
• OB report function
• One-key store: concise and practical
• One-key review：fast, practical image review function
• One-key Print
• One-key Transfer the current frozen image to net workstation to complete its image text report and print directly
• Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station which is really complicated and waste time)
• Unique One-key-light keyboard function for black room use
• Display brightness adjustable
• Dual TV output: PAL/NTSC, can connect video printer when necessary
• Power supply：100-240V～ 1.2-0.6A  frequency：50-60Hz
• Power supply adaptor output：DC12.8V 3.0A
• Main unit weight：4.5kg（without accessories）
• Main unit dimension：256×150×326mm（L×W×H)

• Main unit
• One probe
• Power supply adaptor
• Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
• Reticle
• Two probe sockets
• DICOM 3.0

Probes

• 4.0MHz Convex Rectal probe
• 6.5MHz Micro-Convex Probe for small animals
• 3.5MHz Linear Probe for eye muscle
• 3.5MHz Convex Probe
• 7.5MHz Linear Probe

• Battery charger
• Trolley
• Video printer（UP-897MD）
• Ethernet Switch
